كود المنتج
ZigBeeCC2531 USB dongle
4,99 $

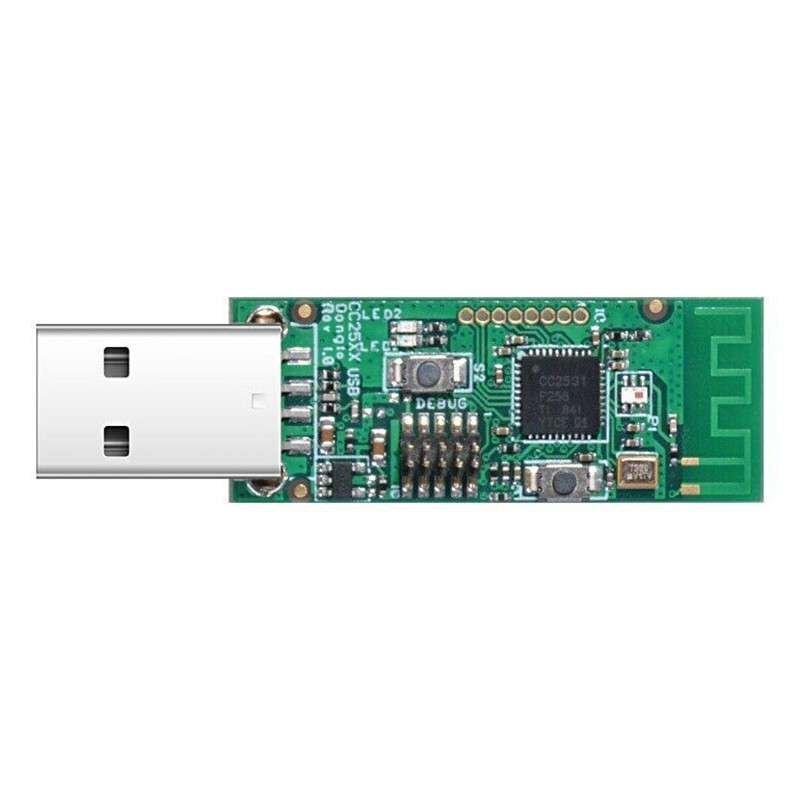

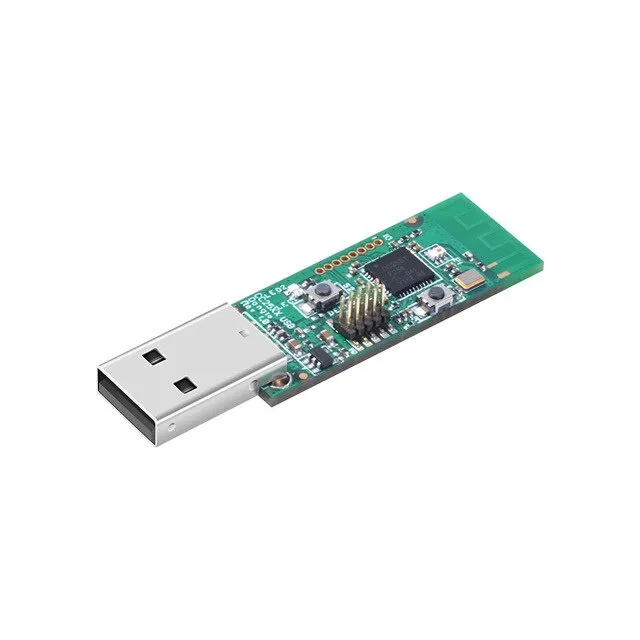

ZigBeeCC2531 USB Dongle
is a USB Zigbee coordinator based on the Texas Instruments CC2531 chipset. It can operate as a Zigbee Coordinator or Router for platforms such as Home Assistant, Zigbee2MQTT, and ZHA. It is a popular low-cost solution for smart home and DIY Zigbee networks.
Features:
• Functions as a Zigbee Coordinator or Router
• Based on the Texas Instruments CC2531 chipset
• Supports Zigbee 3.0 and IEEE 802.15.4
• Compatible with Home Assistant, Zigbee2MQTT, and ZHA
• USB plug-and-play connectivity
• Firmware upgrade support
• Low power consumption
• Compact and lightweight design
• Ideal for DIY and small smart home installations
• No external power supply required.
Technical Specifications:
• Model: ZigBee CC2531 USB Dongle
• Device Type: USB Zigbee Coordinator
• Chipset: Texas Instruments CC2531
• Protocol: Zigbee 3.0 / IEEE 802.15.4
• Interface: USB 2.0
• Input: 5V DC via USB
• Frequency: 2.4GHz
• Data Rate: 250 kbps
• Flash Memory: 256KB
• RAM: 8KB
• RF Output Power: Up to +4.5 dBm
• Wireless Range: Up to 30m (typical, depending on environment)
• Operating Temperature: -40°C to +125°C (chip specification).
4,99 $
