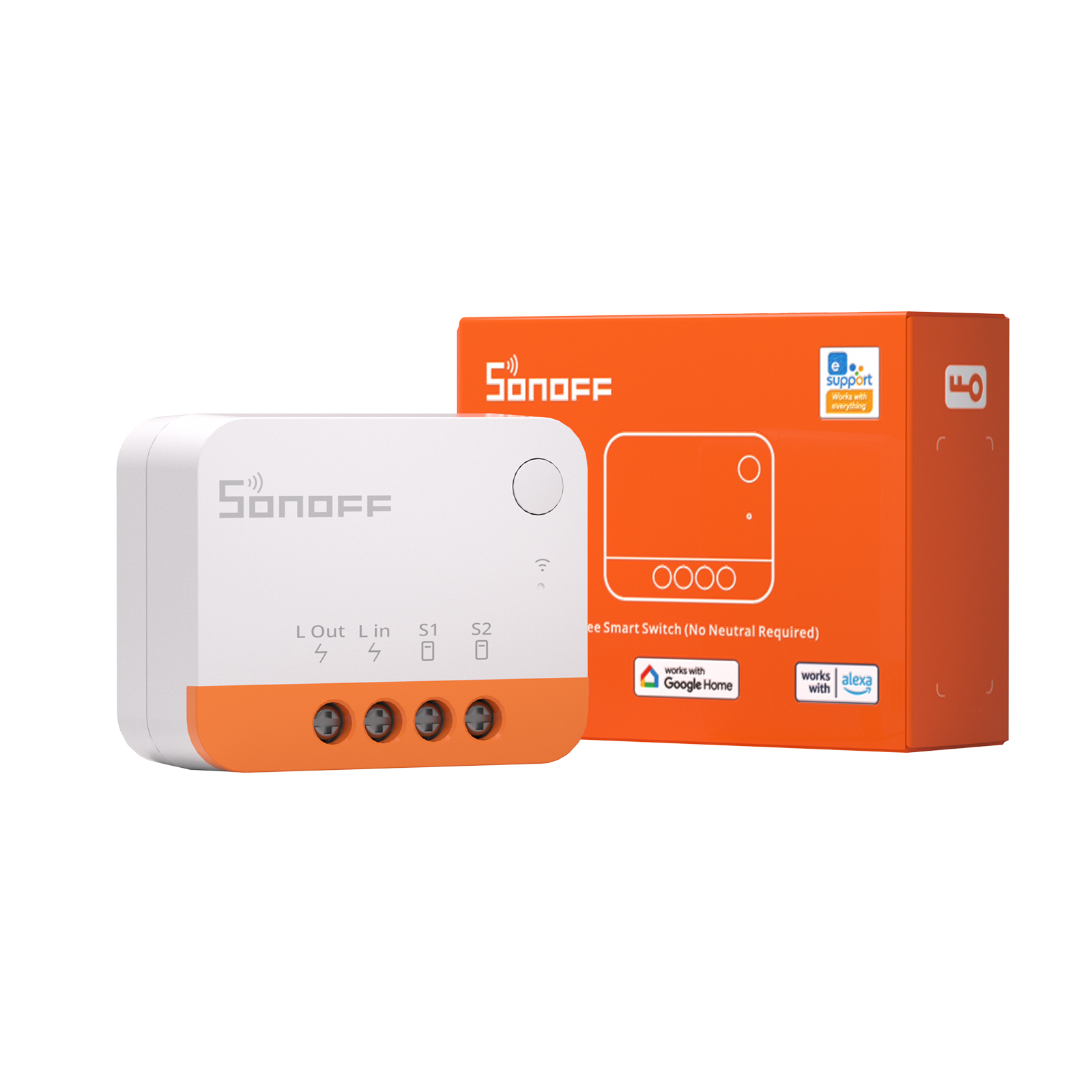

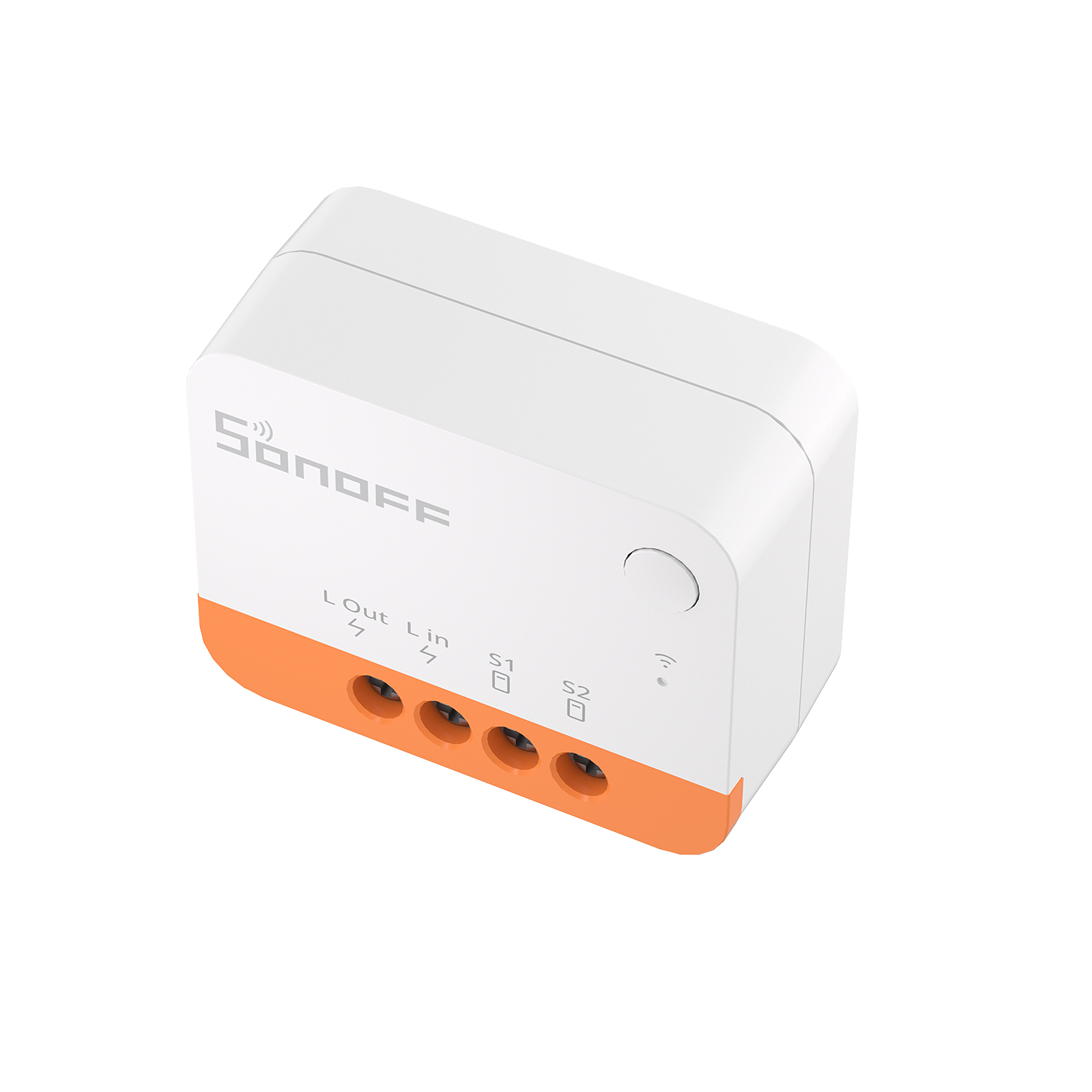

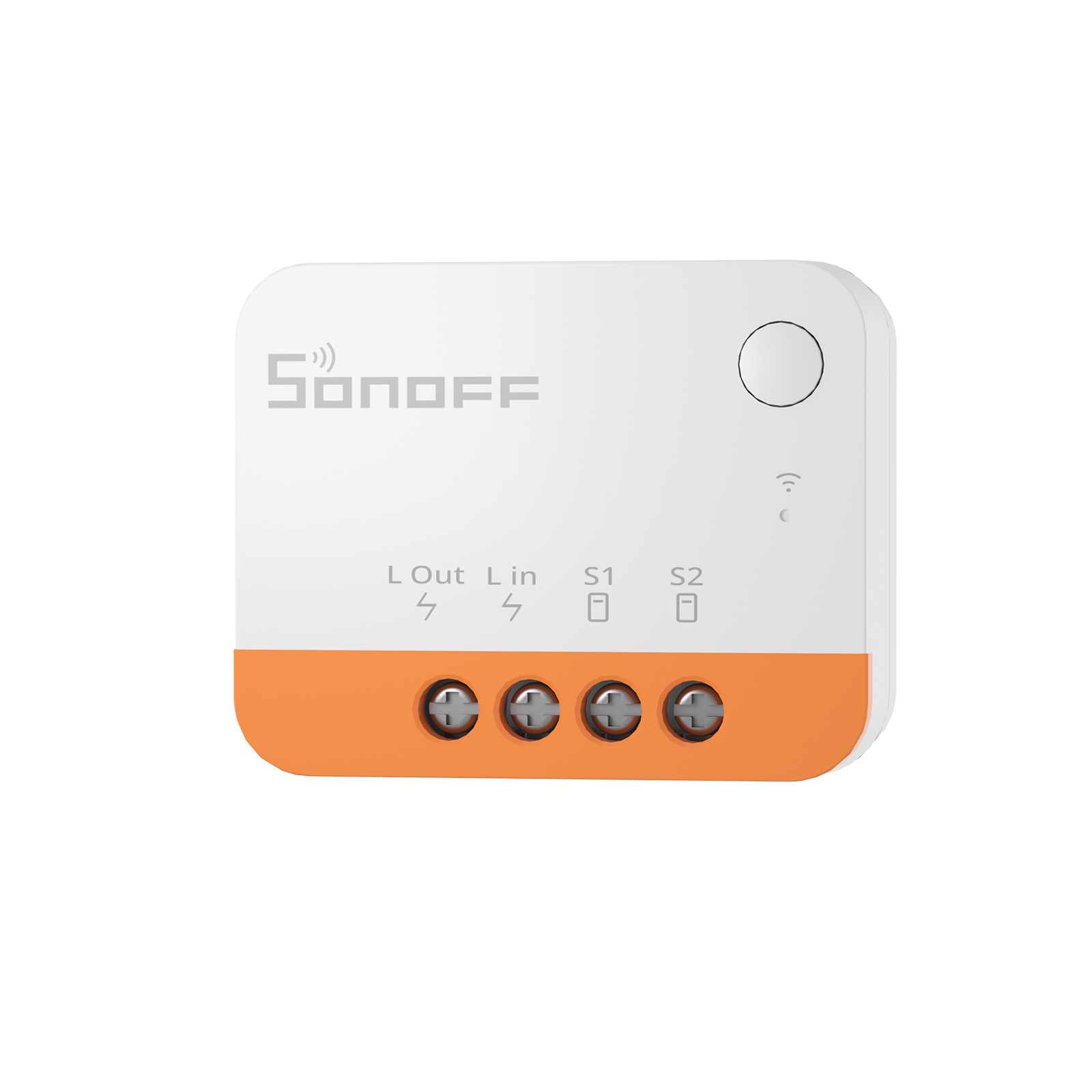

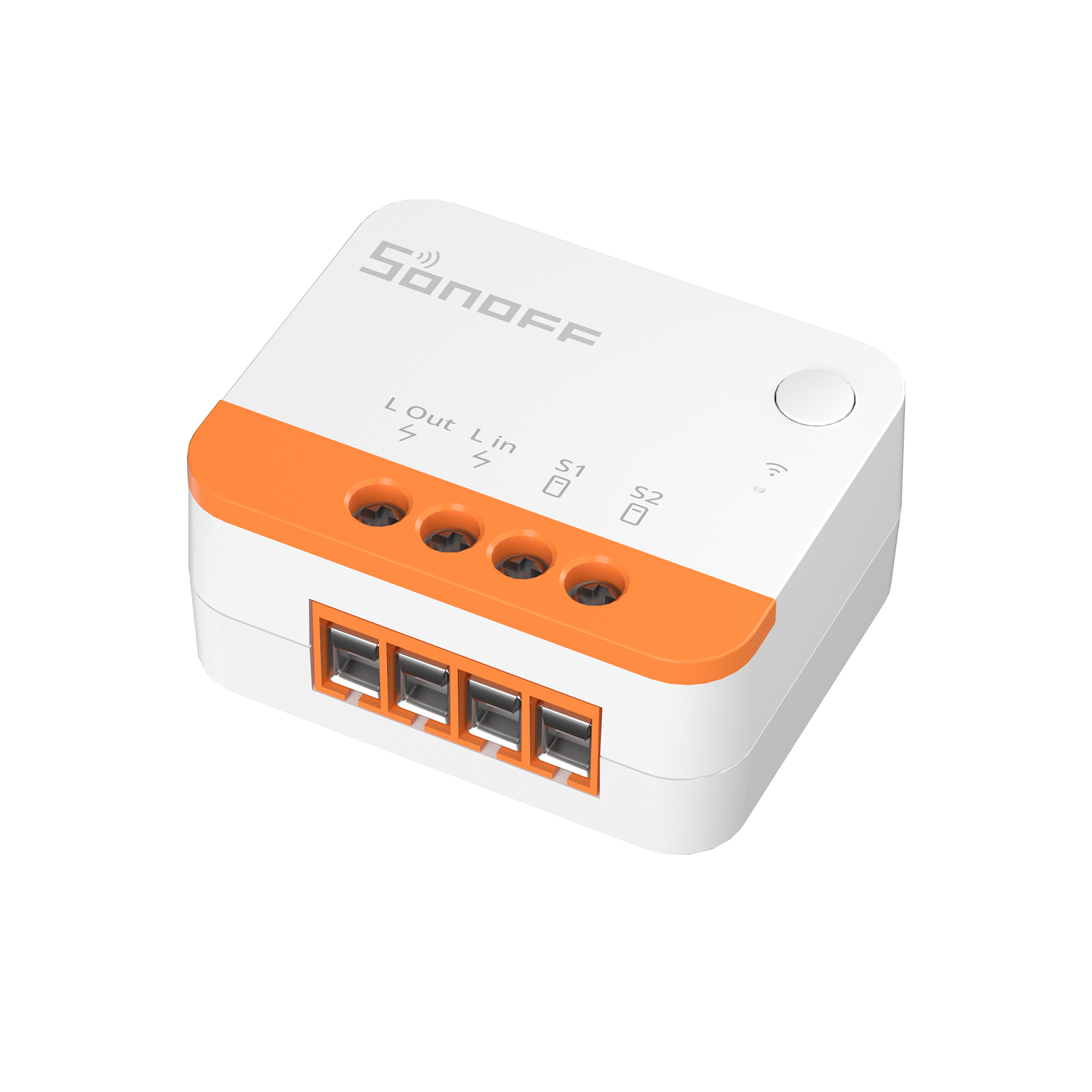

ZBMINIL2

is a very compact Zigbee 3.0 smart switch module that fits inside standard EU/86/120 wall boxes, enabling you to turn a traditional wall switch into a smart one — without needing a neutral wire.
Supports external wall switches (rocker or push button) to maintain manual control alongside smart control. Works well with low-power loads such as LED lights.
Allows remote ON/OFF control via Zigbee hubs and smart platforms, plus scheduling, timers, smart scenes, and voice control (Alexa & Google Home).

📌 Technical Specifications:
– Model: ZBMINIL2
– Input Voltage: 100–240 V AC, 50/60Hz
– Max Current: 6A
– Max Load (Resistive): 1380W @ 230V / 720W @ 120V
– LED / Low-Power Load Capacity: up to 300W @ 230V or 150W @ 120V
– Wireless Protocol: Zigbee 3.0 (IEEE 802.15.4)
– Dimensions: 39.5 × 32 × 18.4 mm
– Housing: PC V0 fire-resistant plastic
– Operating Temperature: –10°C to +40°C
– External Switch Support: Rocker / Push-button / 2-way / 3-way / SPDT
– Recommended Use: LED lights, household lighting, low-power loads — NOT heavy-load devices or motors
